S M08-L6.50-C.75
Shanks for tools with FLEXFIT threaded connection.

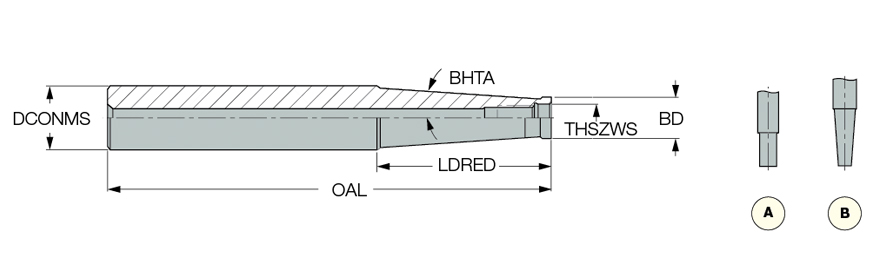

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M08 | Tool Type | Cylindrical Shanks |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Diameter (BD) | 0.512″ |
| Material | Carbide | Weight of Item (WT) | 0.66 Lbs |
| Overall Length (OAL) | 6-1/2″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 2.63″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Shanks for tools with FLEXFIT threaded connection. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info |
Shipping Info
Package Weight
0.697
