TS S-A-L200-C20-T12-C

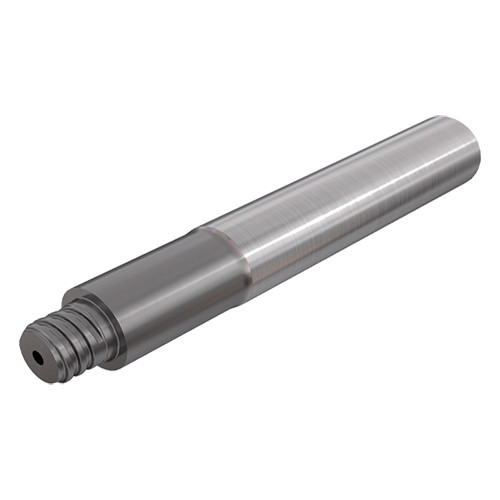

SHANK-MASTER stepped cylindrical shanks with threaded adaptation for interchangeable solid carbide milling heads

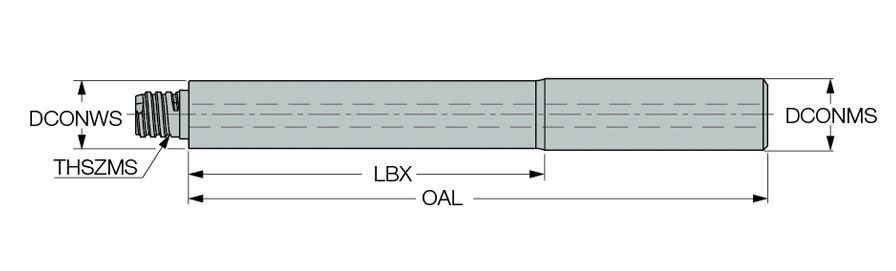

| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Diameter (BD) | 19.2 mm |
| Material | Carbide | Weight of Item (WT) | 0.89 Kg |
| Overall Length (OAL) | 200 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Body Length Maximum (LBX) | 120 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Carbide |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | SHANK-MASTER stepped cylindrical shanks with threaded adaptation for interchangeable solid carbide milling heads | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection |
