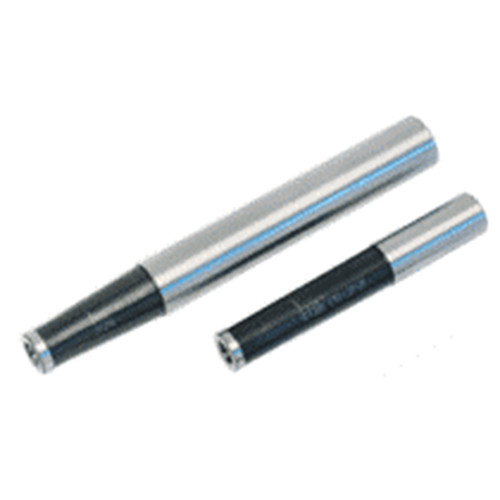

S M06-L125-C16 5860

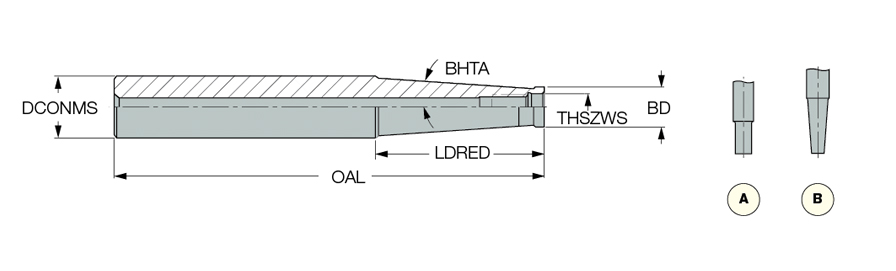

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M06 | Tool Type | Cylindrical Shanks |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Diameter (BD) | 9.7 mm |
| Material | Carbide | Weight of Item (WT) | 0.13 Kg |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 60 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Shanks for tools with FLEXFIT threaded connection. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info |
Shipping Info
Package Weight
0.355
