MM S-A-L075-C10-T06-N

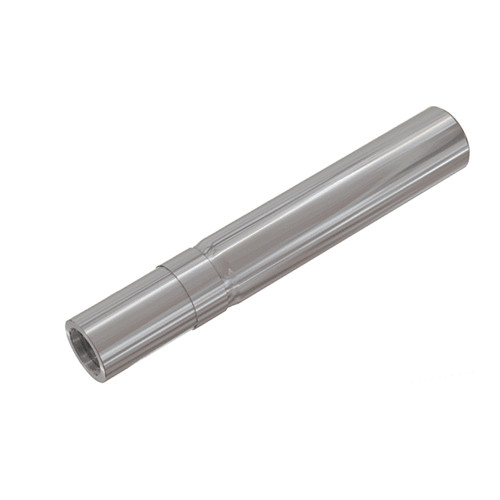

MULTI-MASTER, stepped cylindrical shanks with parallel directed coolant for solid carbide milling heads.

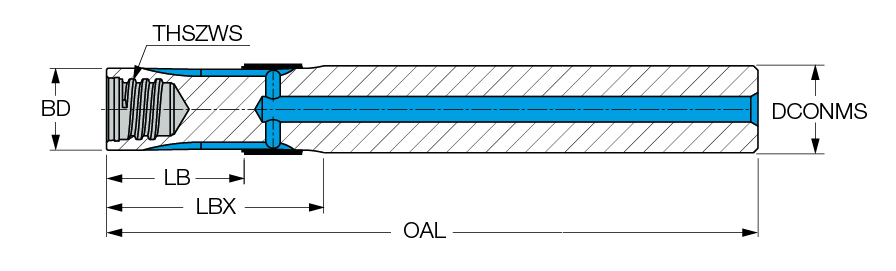

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T06 | Body Diameter (BD) | 9.6 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Body Length (LB) | 18 mm |
| Material | Carbide | Weight of Item (WT) | 0.04 Kg |
| Overall Length (OAL) | 75 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 28 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks with parallel directed coolant for solid carbide milling heads. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.110
