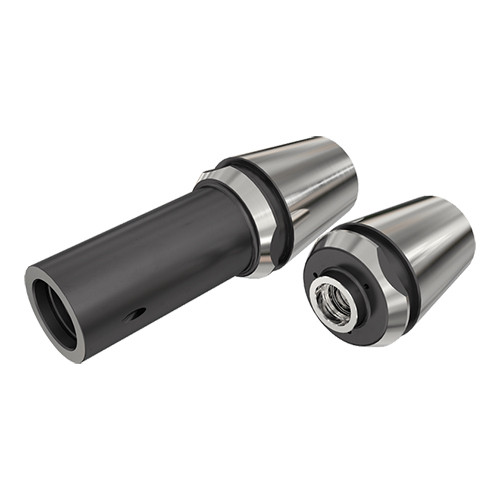

MM S-A-H004-ER32-T12-H
Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes

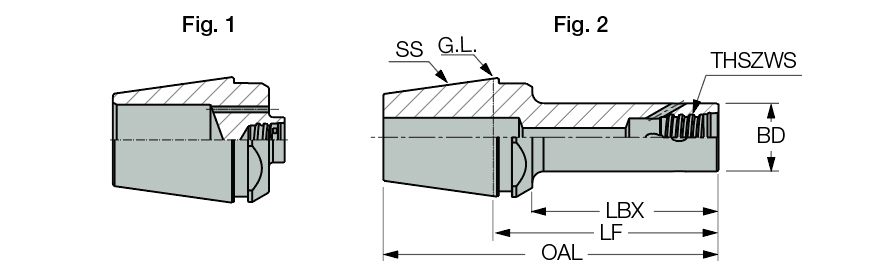

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T12 | Body Diameter (BD) | 0.72″ |
| Material | Carbide | Functional Length (LF) | 0.555″ |
| Overall Length (OAL) | 1.732″ | Weight of Item (WT) | 0.32 Lbs |
| Shank Size (SS) | ER32 | Measurement Type | Inch |
| Body Length Maximum (LBX) | 0.16″ | Body Material | Steel |
| Tool Type | Spring Collets |
Product Features
| Family Description | Shanks that mount MULTI-MASTER solid carbide heads with an ER colleta adaptation and coolant holes | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection. For adaptation click on More Info. |
Shipping Info
Package Weight
0.359
