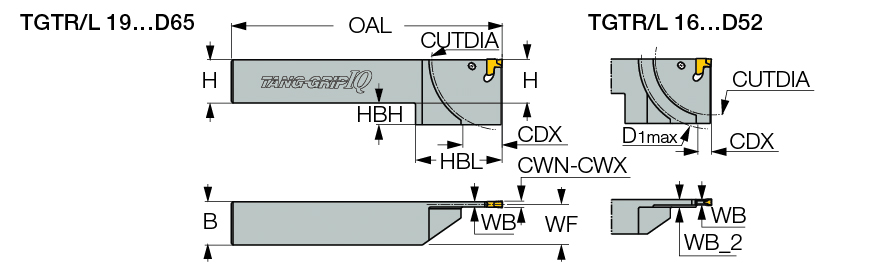

| Shank Height (H) | 20 mm | Shank Standard | Square |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 2.5 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 2.8 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 65 mm |
| Cutting Width Maximum (CWX) | 3.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 125 mm | Measurement Type | Metric |
| Head Length (LH) | 40 mm | Functional Width (WF) | 18.8 mm |
| Cutting Depth Maximum (CDX) | 18 mm | Head Bottom Offset Height (HBH) | 10 mm |
| Cutting Position | External | Tool Assembly Length (LTA) | 48.5 mm |
| Application | | Ext. Grooving | Parting | |
Product Features

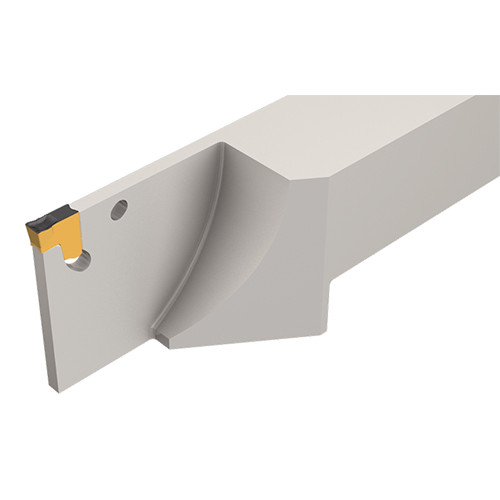

| Family Description | Integral shank parting and grooving tools with reinforced Blades. Designed mainly for parting of relatively large diameters on sub spindle machines which carry either 16 or 20 mm square shank tools. | Country of Origin | Israel |
| Remarks | For depth of cut vs. workpiece diameter, click on More Info |
