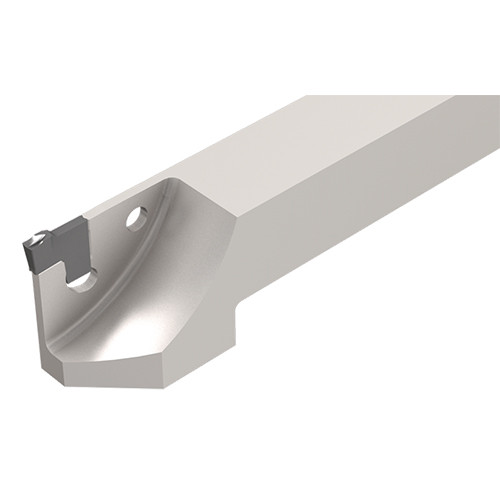

TGTL 1616-2-IQ
Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

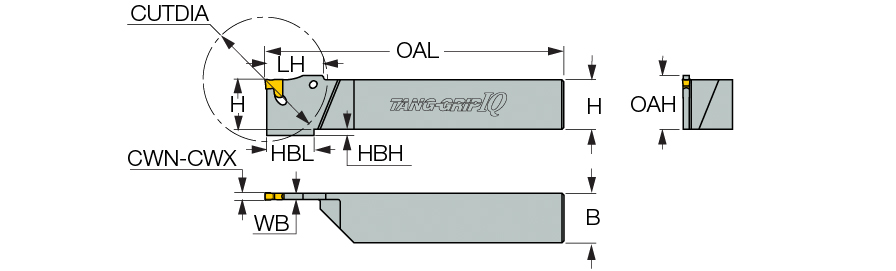

| Shank Height (H) | 16 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 16 mm | Shank Standard | Square |
| Body Width (WB) | 1.65 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.8 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 2.4 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Overall Length (OAL) | 150 mm | Cutting Direction (HAND) | Left Hand |
| Overall Height (OAH) | 16 mm | Measurement Type | Metric |
| Cutting Position | External | Tool Assembly Length (LTA) | 33.6 mm |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
6.00000
Package Width
1.20000
Package Height
1.20000
Package Weight
0.628
