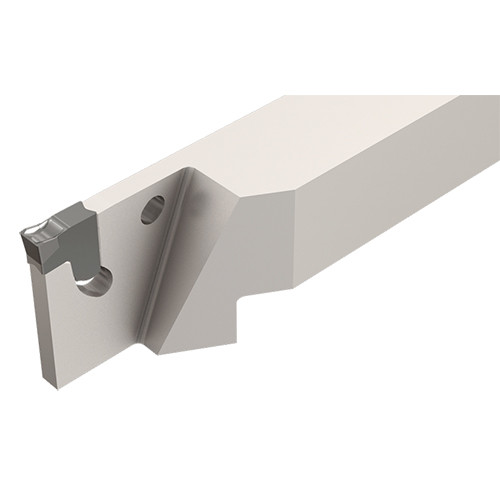

TGTR 25.4-4-IQ
Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

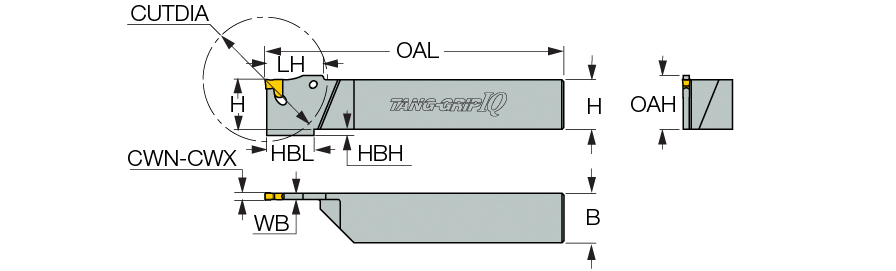

| Shank Height (H) | 1″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1″ | Shank Standard | Square |
| Body Width (WB) | 0.134″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.146″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.177″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2-1/2″ |
| Overall Length (OAL) | 5.905″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 0.9″ | Measurement Type | Inch |
| Overall Height (OAH) | 1.07″ | Tool Assembly Length (LTA) | 1.315″ |
| Cutting Position | External |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feeds and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
Shipping Info
Package Weight
1.388
