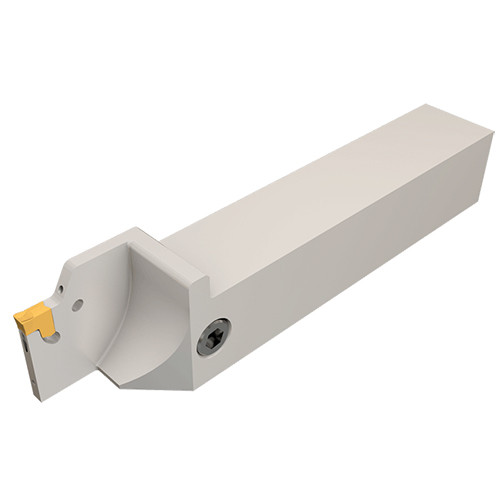

TGTL 2525-4JHP
Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

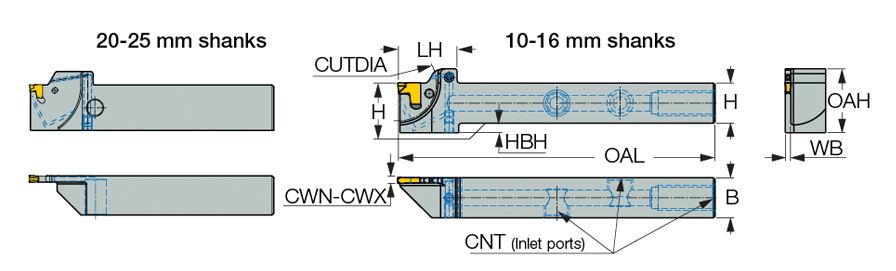

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Body Width (WB) | 3.4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3.7 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 4.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 56 mm |
| Overall Length (OAL) | 150 mm | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 35 mm | Measurement Type | Metric |
| Overall Height (OAH) | 32.5 mm | Tool Assembly Length (LTA) | 46 mm |
| Cutting Position | External |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
1.431
