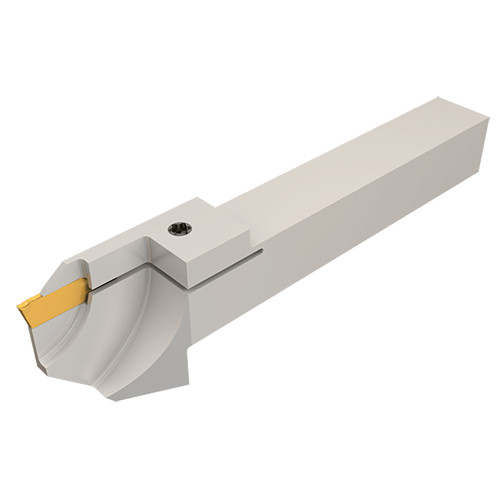

DGTR 12B-1.4D20-TR12
Integral shank, reinforced parting and grooving tools carrying double-ended DO-GRIP inserts.

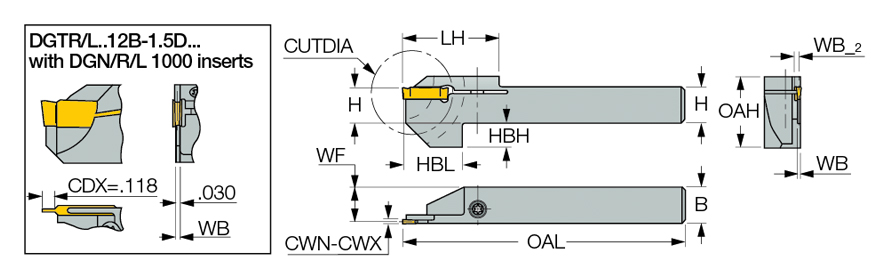

| Shank Height (H) | 0.472″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 0.472″ | Shank Standard | Square |
| Body Width (WB) | 0.039″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.055″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.055″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Overall Length (OAL) | 3.74″ | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 1.28″ | Measurement Type | Inch |
| Overall Height (OAH) | 0.93″ | Body Width_2 (WB_2) | 0.091″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.673″ |
Product Features
| Family Description | Integral shank, reinforced parting and grooving tools carrying double-ended DO-GRIP inserts. | Country of Origin | Israel |
| Remarks | Important: .055 width inserts should be used only on tools for .055 specific width! For Traub machines, model TNL 12/7 |
Shipping Info
Package Weight
0.298
