DGTL 12.7B-2D24-JHP-SL
Parting and grooving tools with high-pressure coolant and a user friendly side clamping mechanism for Swiss-type and automatic machines.

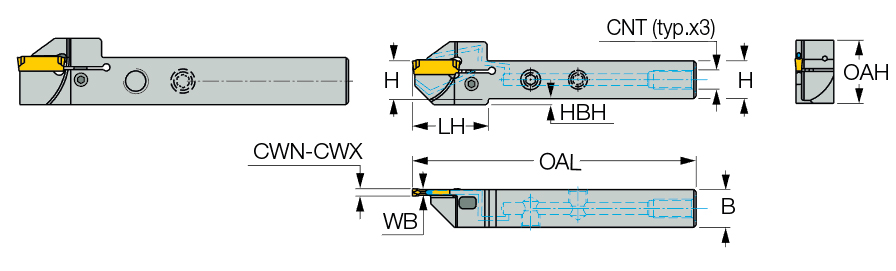

| Shank Height (H) | 1/2″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 1/2″ | Shank Standard | Square |
| Body Width (WB) | 0.067″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.075″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 0.1″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.94″ |
| Overall Length (OAL) | 3.94″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 1.1″ | Measurement Type | Inch |
| Overall Height (OAH) | 1″ | Coolant Entry Thread Size (CNT) | 5/16 UNF |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.49″ |
Product Features
| Family Description | Parting and grooving tools with high-pressure coolant and a user friendly side clamping mechanism for Swiss-type and automatic machines. | Country of Origin | Israel |

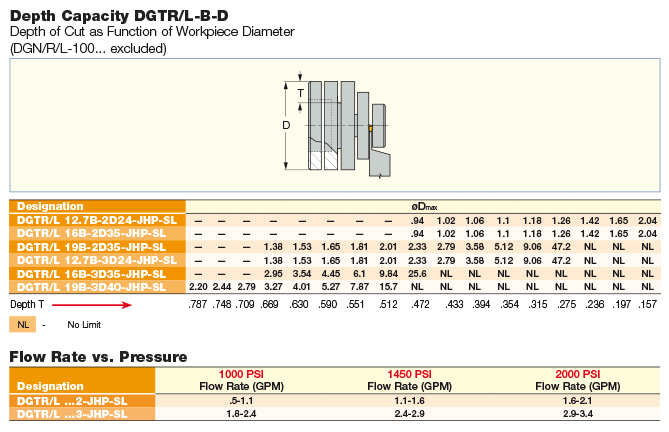

| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.396
Related Documentation
