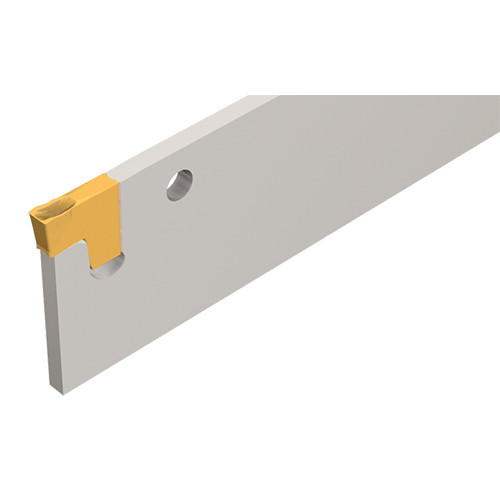

TGFS 5-22-3
Blades for multi-spindle machines - replacement for HSS and brazed tools, using TANG-GRIP tangentially clamped inserts.

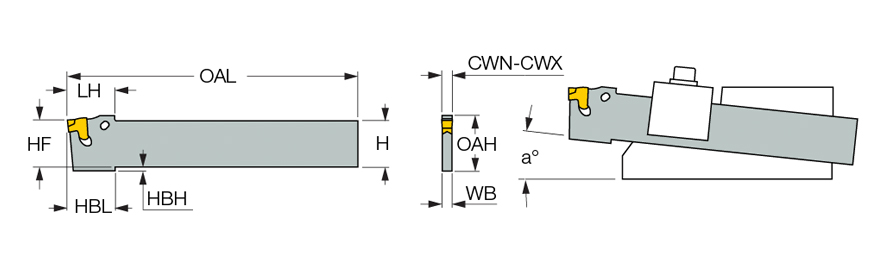

| Shank Height (H) | 0.874″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.098″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.11″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.138″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 5.906″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.953″ |
| Head Length (LH) | 0.709″ | Cutting Direction (HAND) | Neutral |
| Overall Height (OAH) | 0.95″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 1.102″ |
Product Features
| Family Description | Blades for multi-spindle machines - replacement for HSS and brazed tools, using TANG-GRIP tangentially clamped inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
6.00000
Package Width
1.50000
Package Height
.61600
Package Weight
0.18
