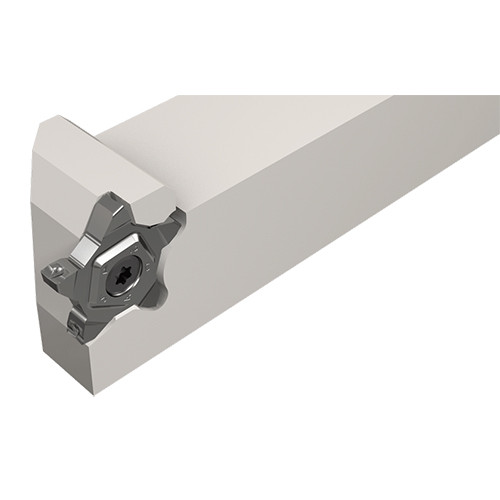

PCHL 25.4-24-5
Parting Off Holder; 5-1/2″ OAL × 0.126″ CW Min. × 0.205″ CW Max. × 0.252″ Max Depth ; Steel

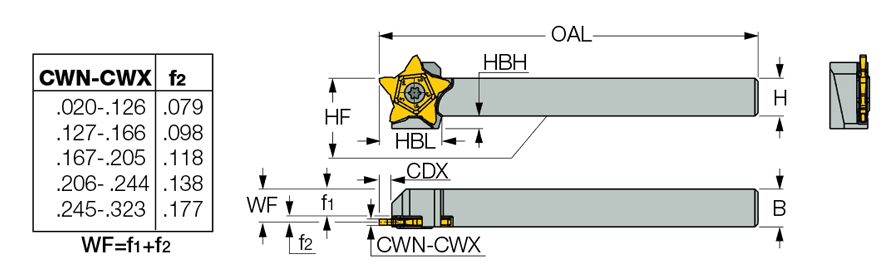

| Shank Height (H) | 1″ | Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 1″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.126″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.205″ | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 5-1/2″ | Cutting Direction (HAND) | Left Hand |
| Head Length (LH) | 0.8″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.252″ | Tool Assembly Length (LTA) | 1.71″ |
| Cutting Position | External |
Product Features
| Family Description | Grooving, parting and recessing holders carrying inserts with 5 cutting edges. | Country of Origin | Israel |
| Remarks | WF=f1+f2 (according to insert width (CW) being used) |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.579
