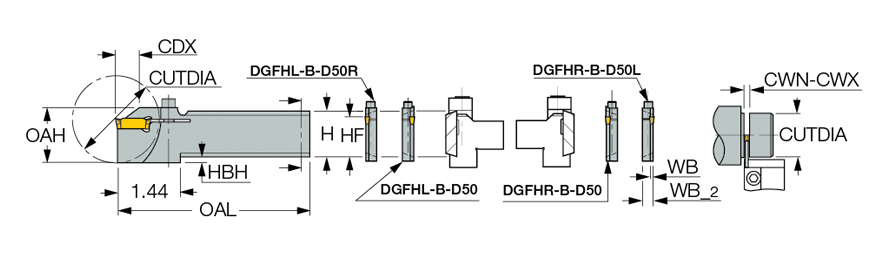

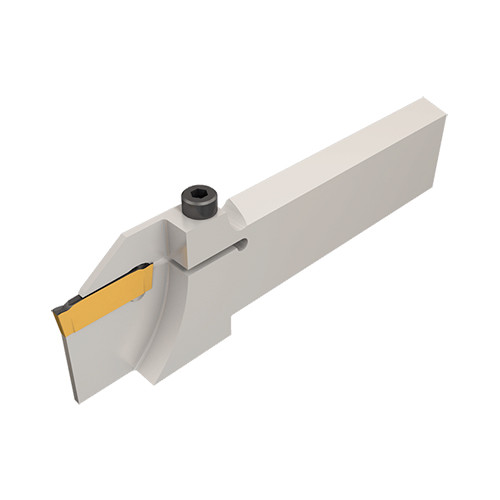

DGFHR 32B-2D50
Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.
| Shank Height (H) | 1.26″ | Application | | Ext. Grooving | Parting | |
| Body Width (WB) | 0.063″ | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 0.075″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.098″ | Tool Type | Blades and adapters for Parting & Grooving |
| Overall Length (OAL) | 4.724″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.968″ |
| Cutting Depth Maximum (CDX) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.24″ | Measurement Type | Inch |
| Functional Length (LF) | 4.724″ | Body Width_2 (WB_2) | 0.315″ |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.126″ |
Product Features
| Family Description | Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. | Country of Origin | Israel |
| Remarks | Insert (double sided) limit is CDX=.709, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified. |
Shipping Info
LocalField10
0
Package Weight
0.455
