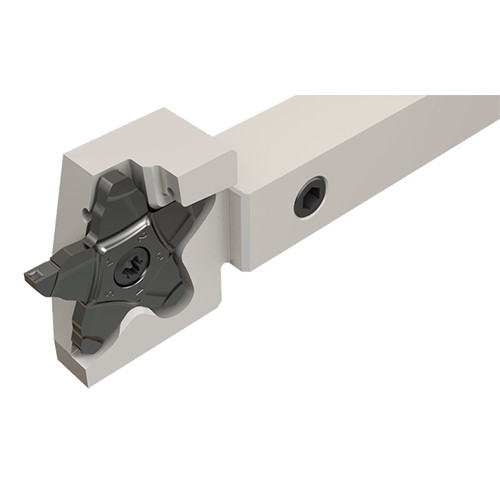

PCHR 25-34-JHP
Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant.

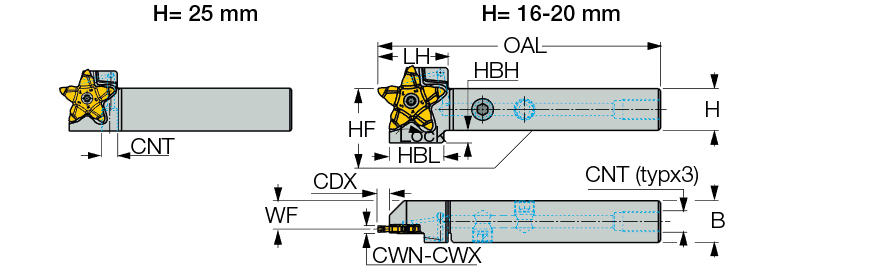

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Face Grooving | Parting | |
| Shank Width (B) | 25 mm | Shank Standard | Square |
| Cutting Width Minimum (CWN) | 1.5 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4 mm | Tool Type | Parting & Grooving Tools |
| Overall Length (OAL) | 135 mm | Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 33.5 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 10 mm | Tool Assembly Length (LTA) | 65 mm |
| Cutting Position | External |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with channels for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
1.415
