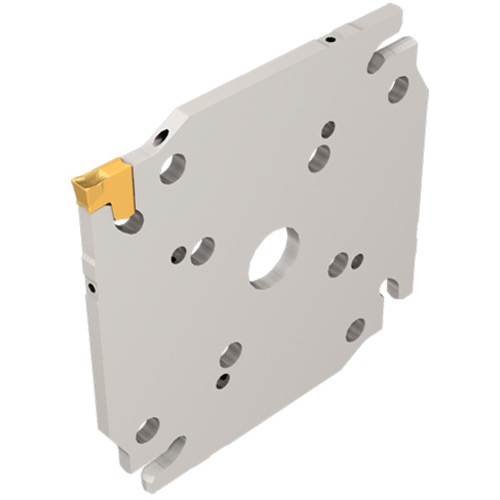

TGAQ D52-3-2Z-JHP
Parting and grooving square adapters with internal coolant holes carrying TANG-GRIP tangentially clamped inserts.

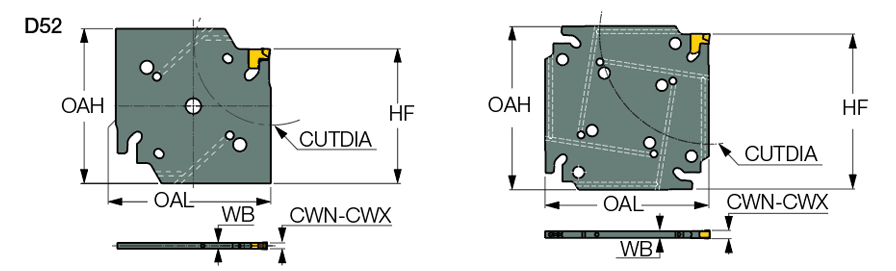

| Body Width (WB) | 0.0984″ | Application | | Ext. Grooving | Parting | |
| Cutting Width Minimum (CWN) | 0.11″ | Shank Standard | Square |
| Cutting Width Maximum (CWX) | 0.138″ | Body Material | Steel |
| Overall Length (OAL) | 1.968″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Height (OAH) | 1.968″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
Product Features
| Family Description | Parting and grooving square adapters with internal coolant holes carrying TANG-GRIP tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | Suitable for all TANG-GRIP inserts D52 Adapters available with two pockets |
Shipping Info
LocalField10
0
Package Weight
0.165
