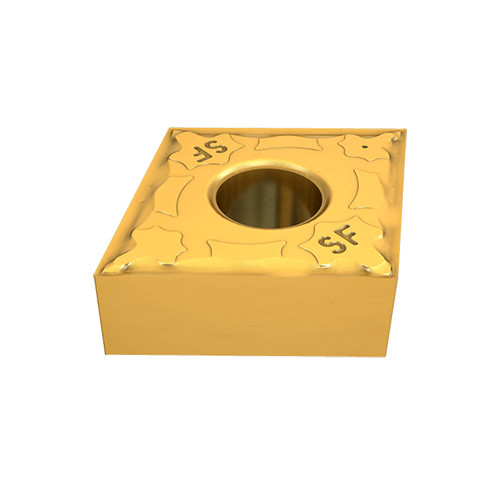

CNMG 430-SF IC520N
Turning Insert; 80 Rhombic ; 0.508″ Length × 1/2″ IC × 0.0079″ Corner Radius ; IC520N ; Cermet ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.012″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |

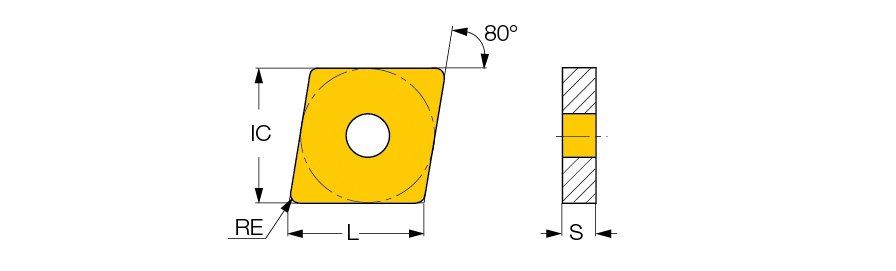

| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Size | 430 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | SF |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Cermet | Measurement Type | Inch |
| Coating | TiCN+TiN | Shape | 80° Rhombic |
| Grade | IC520N | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided 80° rhombic inserts for super-finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
