CNMG 430-FFG IC520N

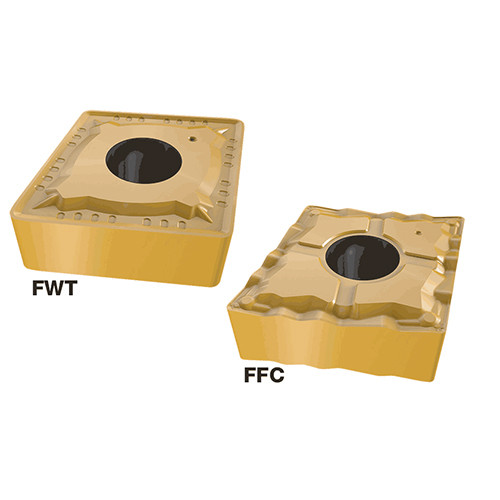

Double-sided 80° rhombic cermet grade inserts, for semi-finishing and finishing applications on steel and cast iron.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |

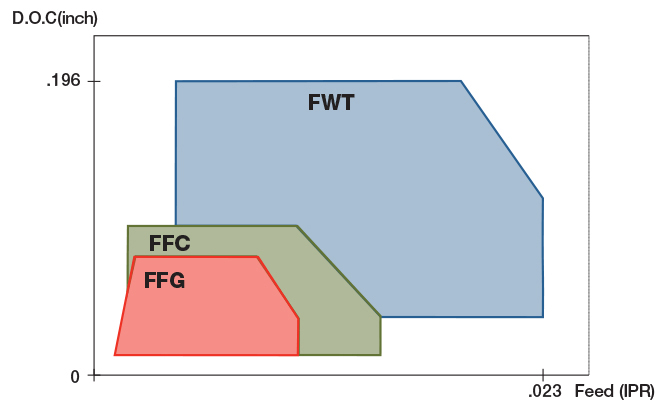

| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.016″ |

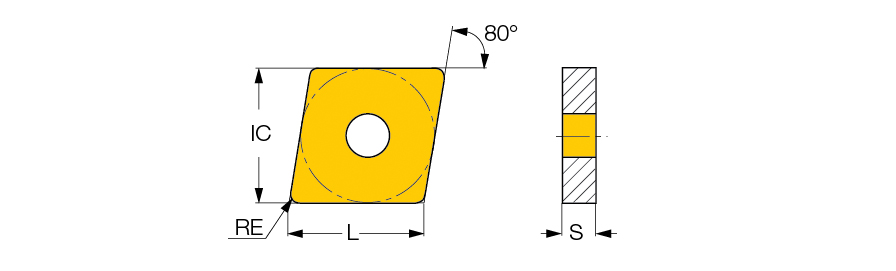

| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.0027 ″/rev |
| Insert Size | 120 | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Cutting Edge Length (L) | 0.508″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Rhombic |
| Coating | TiCN+TiN | Series/List # | ISOI |
| Grade | IC520N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Model No | 8866423 |
Product Features
| Family Description | Double-sided 80° rhombic cermet grade inserts, for semi-finishing and finishing applications on steel and cast iron. | Country of Origin | Korea |
| Remarks | For dimensions and tolerances, click on More Info |
Shipping Info
Package Weight
0.011
