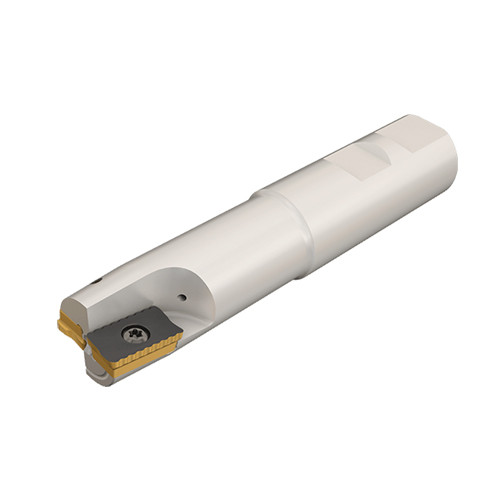

P290 EPW D40-4-200-C32-18
Long reach endmills carrying 12 and 18 mm long edged inserts.

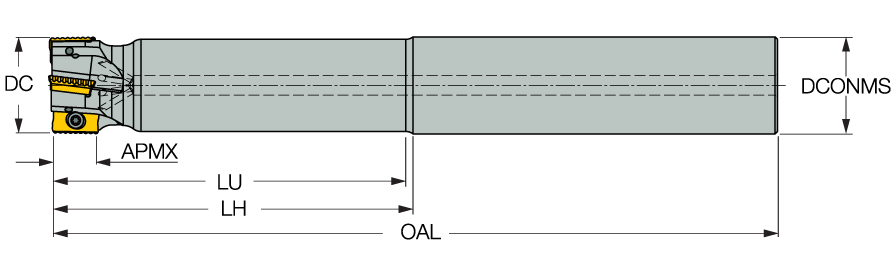

| Cutting Diameter (DC/DCX) | 40 mm | Functional Length (LF) | 200 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 140 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 200 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Rampdown | Shouldering | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 1.13 Kg |
Product Features
| Family Description | Long reach endmills carrying 12 and 18 mm long edged inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
2.937
