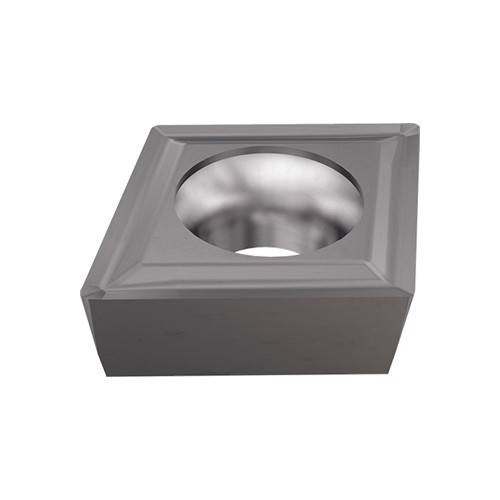

CCMT 2-0 IC8250
80° rhombic 7° positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.02″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | CCMT | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |

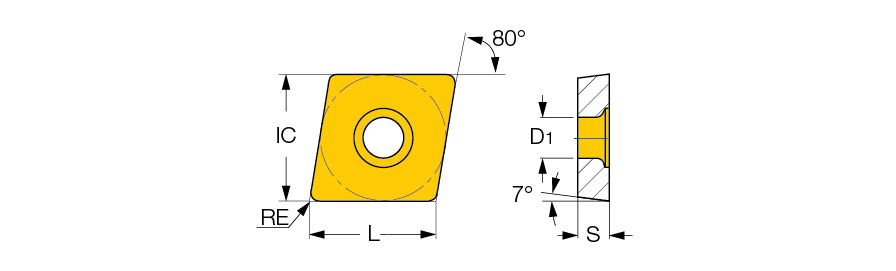

| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 060 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.254″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | 14 |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiCN+Al2O3+TiN | Series/List # | CCMT 2-0-14 |
| Grade | IC8250 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 80° rhombic 7° positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, Click on More Info Left-hand inserts for left-hand external tools and for right-hand internal tools. |
Shipping Info
LocalField10
0
Package Weight
0.004
