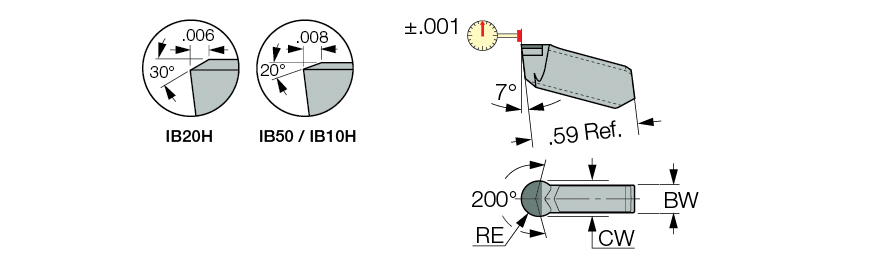

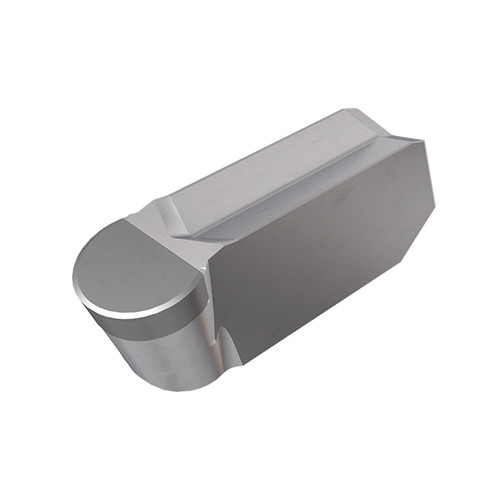

GITM 6.00K-3.00 IB50
| Cutting Width (CW) | 0.236″ | Applicable Material | | Cast Iron | Hard Materials | |
| Corner Radius (RE) | 0.118″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | K |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.591″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0087 inch/rev | Tool Type | Groove Turn Ultra hard Inserts |
| Coating | Uncoated | Threads per Inch (TPI) | 8 |
| Grade | IB50 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | PCBN | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
Product Features
| Family Description | CBN tipped inserts for turning and grooving on hard ferrous materials. Used for finishing hard ferrous materials with 45-65 HRc, dry cutting recommended for interrupted cut. | Country of Origin | Switzerland |
| Remarks | DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.026
