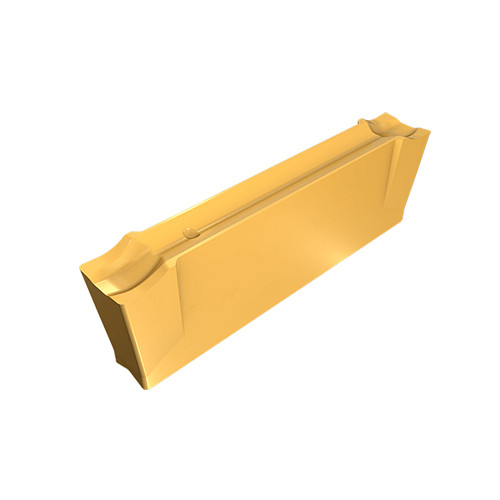

DGN 2202LF IC1010
Double-sided parting and grooving inserts, first choice for stainless steel applications.

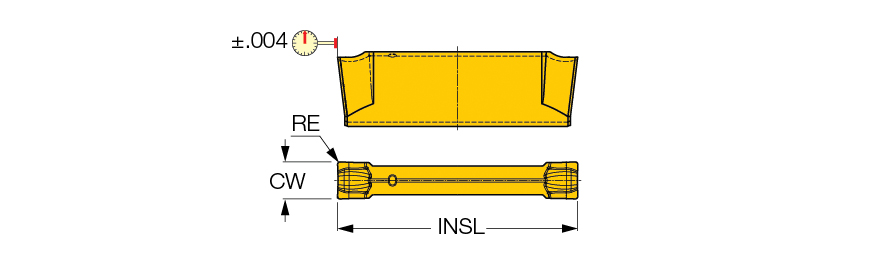

| Cutting Width (CW) | 0.087″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Overall Length (OAL) | 0.78″ | Chip Breaker Type | LF |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN, TiN | Measurement Type | Inch |
| Grade | IC1010 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00118″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
Product Features
| Family Description | Double-sided parting and grooving inserts, first choice for stainless steel applications. | Country of Origin | Israel |
| Remarks | The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer |
Shipping Info
LocalField10
0
Package Weight
0.006
