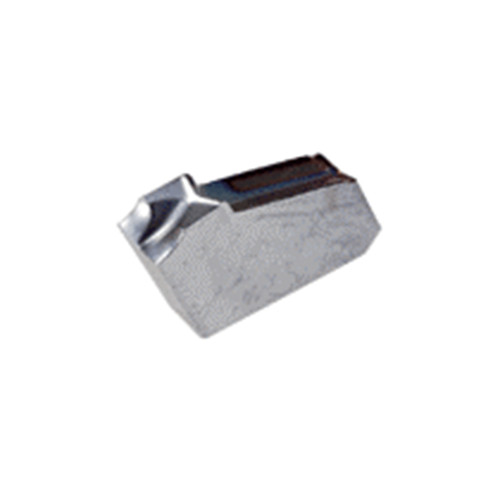

GFL 1.6J - 6D IC328
First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds.
| Cutting Width (CW) | 0.063″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0063″ | Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Coating | TiCN | Chip Breaker Type | J |
| Grade | IC328 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Angle | 12 Degrees |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Application | | Parting | | Body Material | Carbide |
Product Features
| Family Description | First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.003
