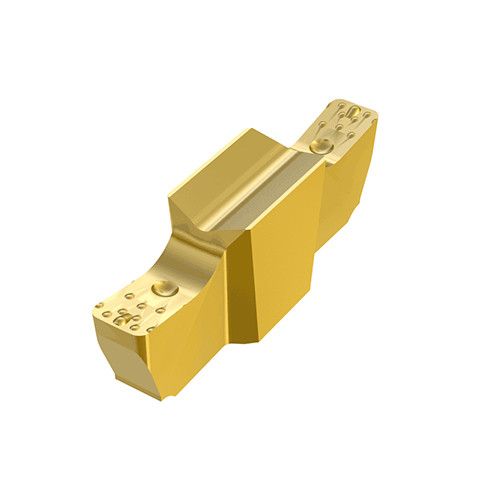

GEPI 1.78-0.15 IC908
Precision double-ended inserts, used for internal grooving at low feeds in diameters from .453″

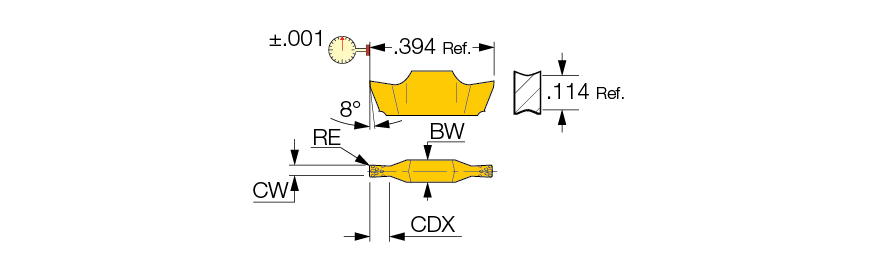

| Cutting Width (CW) | 0.07″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0059″ | Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Overall Length (OAL) | 0.394″ | Chip Breaker Type | FT |
| Insert Length (INSL) | 0.394″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.098″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.071″ |
| Application | | Int. Grooving (side limit) | |
Product Features
| Family Description | Precision double-ended inserts, used for internal grooving at low feeds in diameters from .453″ | Country of Origin | Israel |
| Remarks | E12 GEHIR 16-1 seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=.453 |
Shipping Info
Package Weight
0.004
