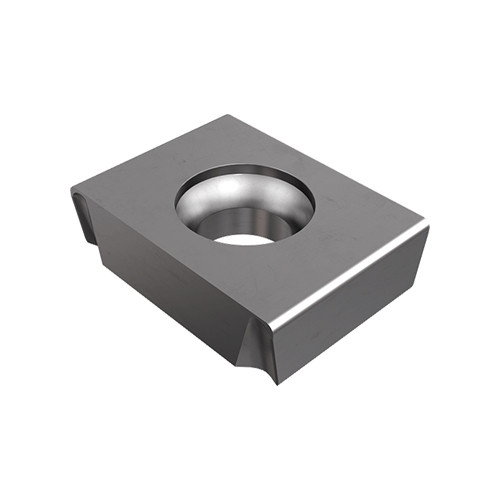

LNET 126516-TN IC928

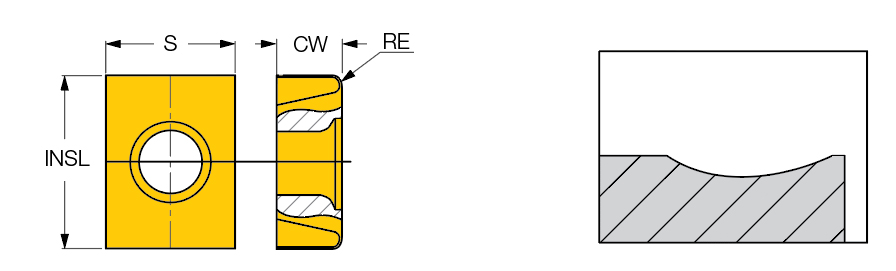

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | T Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 1/2″ | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 0.063″ | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
| Insert Thickness (S) | 3/8″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 |
Product Features
| Family Description | TANGSLOT Tangentially clamped inserts with 4 cutting edges for slotting and precision grooving cutters. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
10.2
