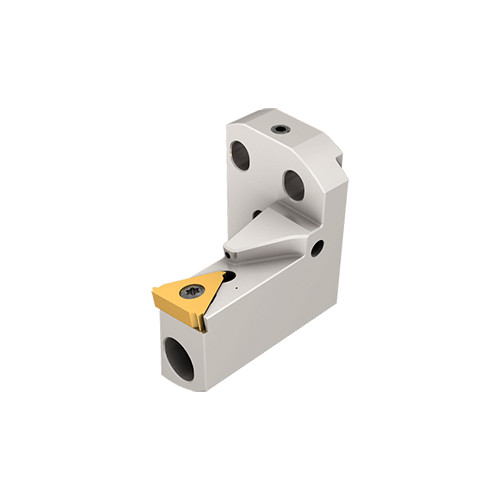

SBTT-16ER-15-JHP
Screw lock JETCUT modular heads mount ISO laydown threading inserts for back-end machining on Swiss-Type machines.

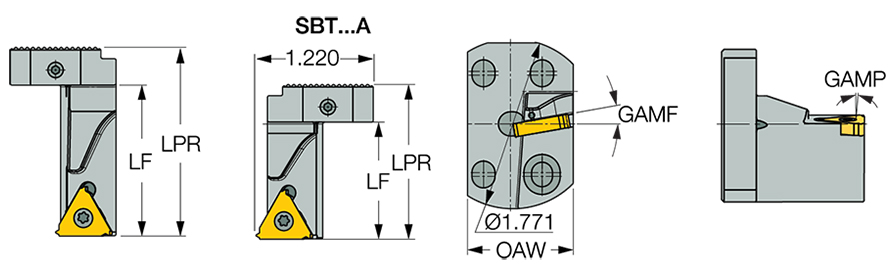

| Protruding Length (LPR) | 1.614″ | Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Length (LF) | 1.22″ | Body Diameter (BD) | 1.7716″ |
| Inscribed Circle Diameter (IC) | 3/8″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Application | | External Threading Axial | | Measurement Type | Inch |
| Rake Angle Axial (GAMP) | 1.5 Degrees |
Product Features
| Family Description | Screw lock JETCUT modular heads mount ISO laydown threading inserts for back-end machining on Swiss-Type machines. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
208
