DGTR 25B-2D35-JHP-SL
Parting and grooving tools with high-pressure coolant and a user friendly side clamping mechanism for Swiss-type and automatic machines.
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 1.7 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 35 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Head Length (LH) | 32.1 mm | Coolant Entry Thread Size (CNT) | 1/8″-28 BSPP |
| Overall Height (OAH) | 33.1 mm | Tool Assembly Length (LTA) | 42.9 mm |
Product Features
| Family Description | Parting and grooving tools with high-pressure coolant and a user friendly side clamping mechanism for Swiss-type and automatic machines. | Country of Origin | Israel |

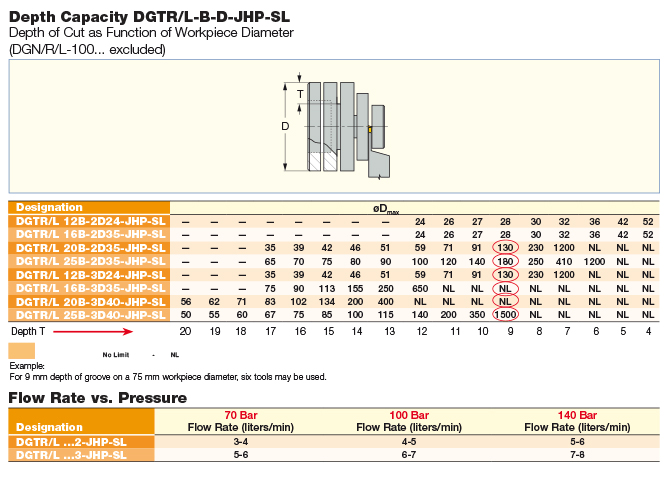

| Remarks | For insert depth capacity table and modification instructions for the holder pockets, click on More Info |
Shipping Info
LocalField10
0
Package Weight
740
