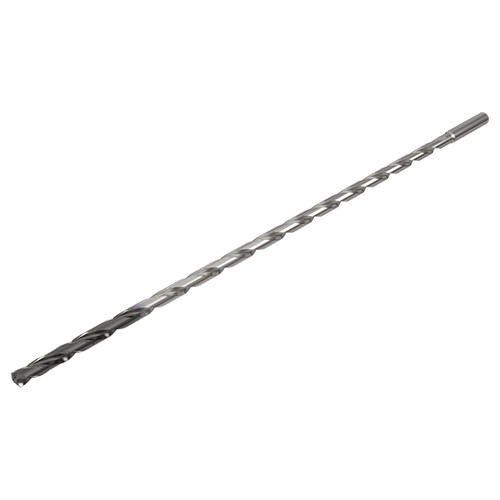

SCD 135-224-140 SXC16 IC908
Solid carbide drills with internal coolant channels, drilling depth 16xD.

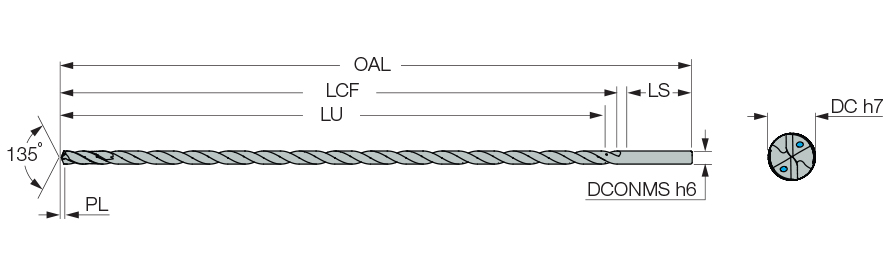

| Drill Bit Size / Cutting Diameter (DC) | 13.5 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 13.5 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 224 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 245 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Overall Length (OAL) | 295 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills with internal coolant channels, drilling depth 16xD. | Country of Origin | USA |
