ER32 SRK 5X60 CX

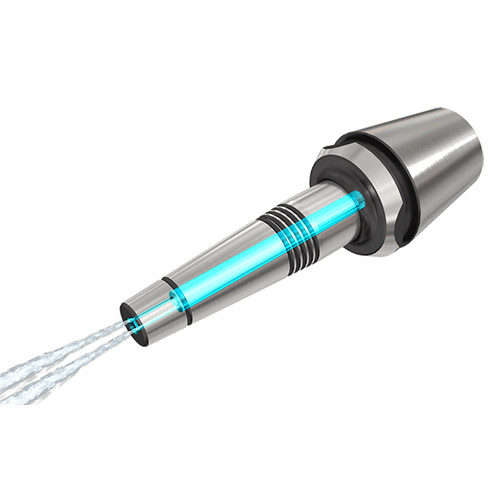

Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only.

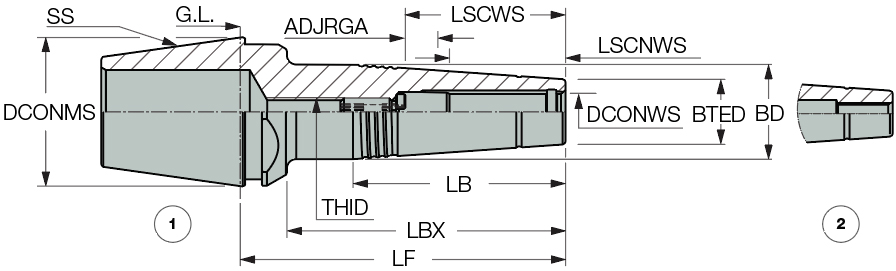

| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Taper End Diameter (BTED) | 10 mm |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Body Length Maximum (LBX) | 60 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Length (LB) | 45 mm | Body Material | Steel |
| Body Diameter (BD) | 16.3 mm |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
Shipping Info
Additional Fees and Notes
0
Package Weight
206
