ER32 SRK 1/4X1.500 CX

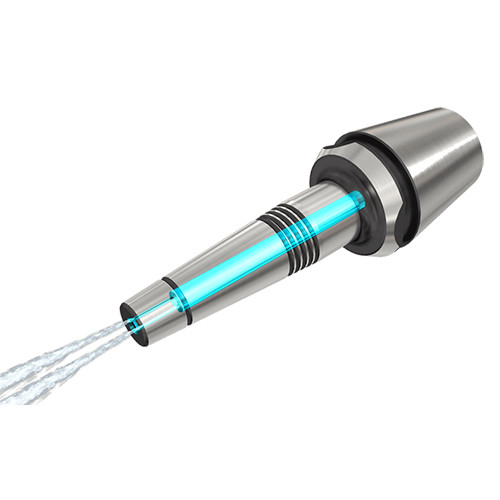

Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only.

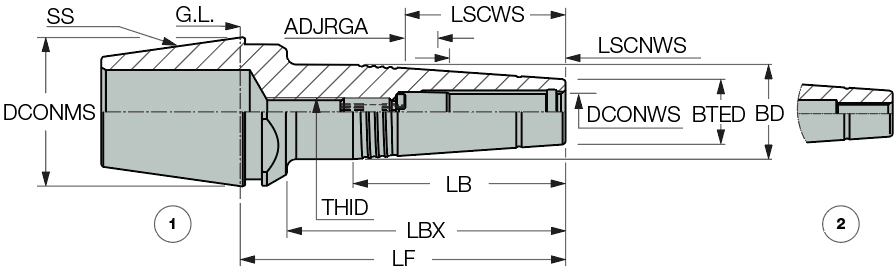

| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Taper End Diameter (BTED) | 0.433″ |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Body Length Maximum (LBX) | 1-1/2″ |
| Shank Size (SS) | ER32 | Clamping Length Workpiece Side (LSCWS) | 1.079″ |
| Body Length (LB) | 1.153″ | Measurement Type | Inch |
| Body Diameter (BD) | 0.594″ | Body Material | Steel |
Product Features
| Family Description | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | Country of Origin | Israel |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed |
