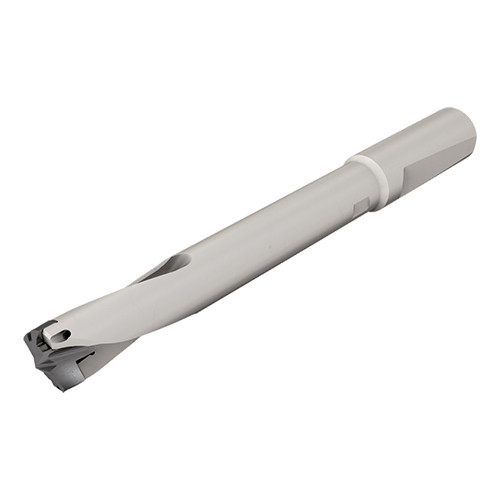

DCN 135-050-16N-5D-BD
Exchangeable head drills with a reinforced body and a Whistle Notch shank,diameter ratio 5xD, for construction beam Industry

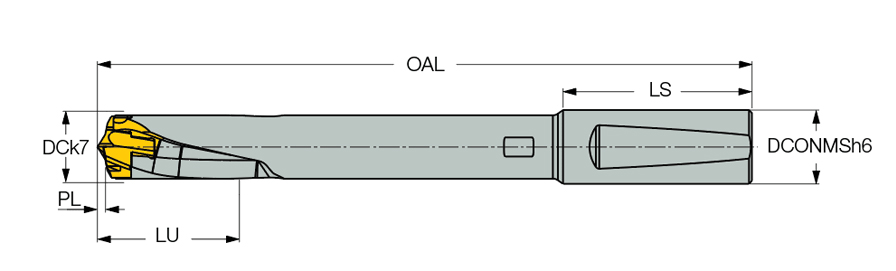

| Cutting Diameter (DC) | 13.5 mm | Functional Length (LF) | 95 mm |
| Usable Length (LU) | 40 mm | Overall Length (OAL) | 153.6 mm |
| Shank Type | Whistle notch | Shank Length (LS) | 57 mm |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | IHP 135-BD |
| Insert Seat Size Code (SSC) | 13.0 | Point Length (PL) | 1.6 mm |
| Cutting Diameter Minimum (DCN) | 13.5 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 13.99 mm | Flange Diameter (DF) | 0 mm |
Product Features
| Family Description | Exchangeable head drills with a reinforced body and a Whistle Notch shank,diameter ratio 5xD, for construction beam Industry | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Additional Fees and Notes
0
Package Weight
189
