| Cutting Diameter 2 (DC_2) | 0.945″ | Shank Length (LS) | 1.968″ |
| Usable Length (LU) | 0″ | Measurement Type | Inch |
| Application | | Chamfering | Drilling | | Master Insert Identification (MIID) | ICP 175 |

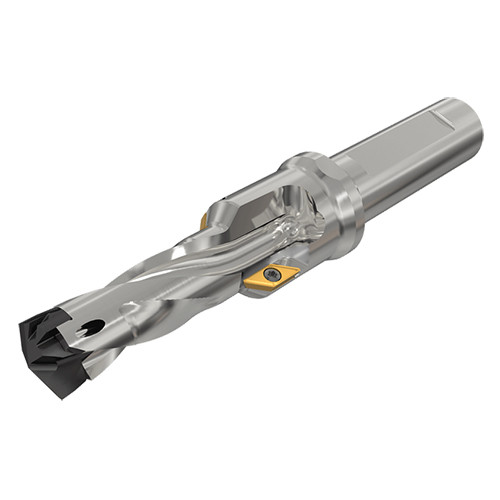

| Tool Type | Chamfering drills | Point Length (PL) | 0.10629″ |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 17.0 | Flange Diameter (DF) | 0.984″ |
| Cutting Diameter Minimum (DCN) | 0.669″ | Step Diameter Length (SDL) | 1.6535″ |
| Cutting Diameter Maximum (DCX) | 0.705″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 4.803″ |
Product Features

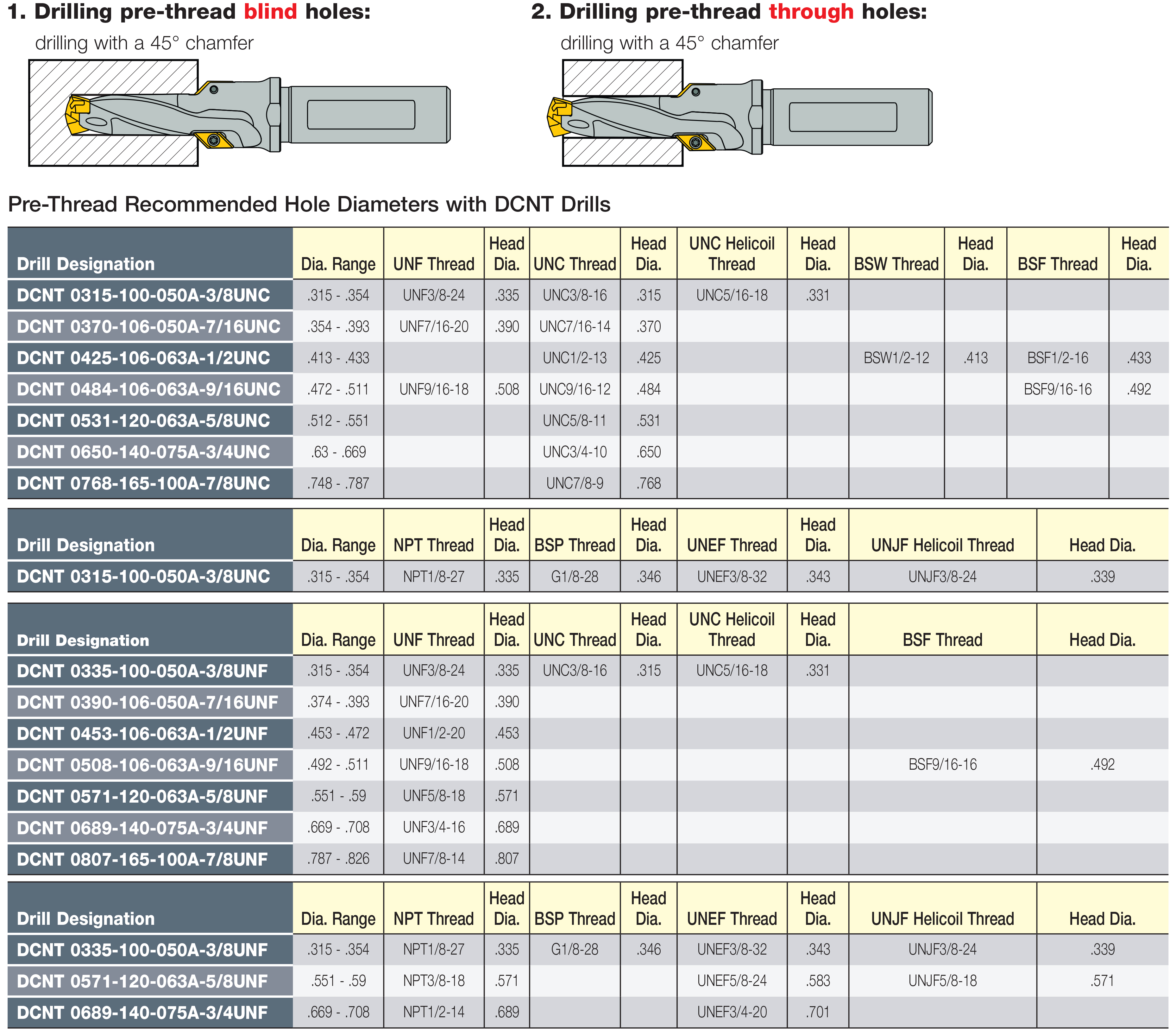

| Family Description | Exchangeable head drills with chamfering inserts mainly for pre-thread holes | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.637
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body
