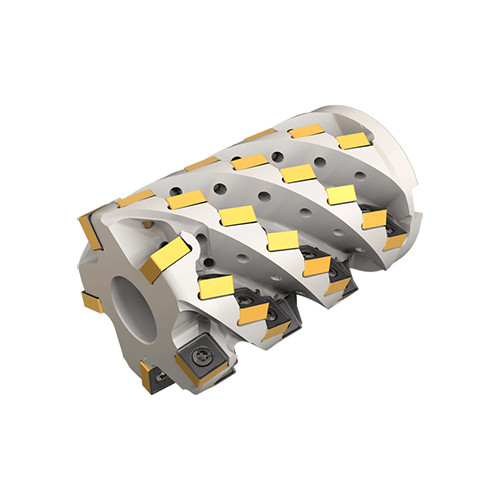

S890 SM D3.-3.3-5-1.25-13
Extended flute cutters carrying double-sided square inserts with 8 cutting edges
| Application | | Shouldering | | Master Insert Identification (MIID) | S890 SNMU 130608 |
| Cutting Item Count (CICT) | 40 | Coolant Supply Property (CSP) | Coolant Thru |

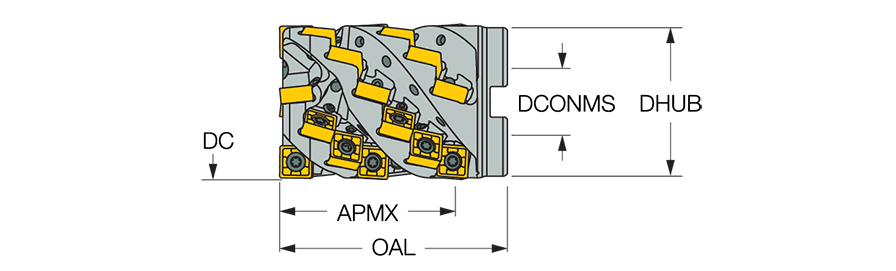

| Depth of Cut Maximum (APMX) | 3.3″ | Arbor Style | A |
| Cutting Diameter (DC) | 3″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Body Material | Steel |
| Overall Length (OAL) | 3.9″ | Hub Diameter (DHUB) | 2.88″ |
Product Features
| Family Description | Extended flute cutters carrying double-sided square inserts with 8 cutting edges | Country of Origin | Israel |
| Remarks | When using inserts with a corner radius of above 0.126, the pockets in the first row of the tool body should be modified to accommodate larger insert corners. For adaptation, click on More Info. |
Shipping Info
LocalField10
0
Package Weight
2053
