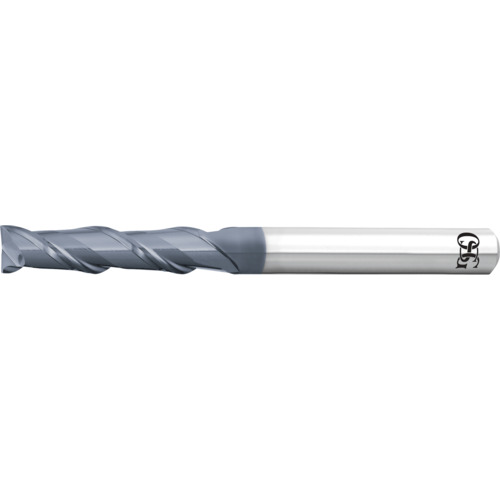

3.8 mm Dia. × 6 mm Shank × 15.2 mm DOC × 3″ OAL, Carbide, Cr, 2 Flute, Square, Solid End Mill
| Cutting Diameter (DC) | 3.8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 15.2 mm | Tool Type | Center Cut |
| Overall Length (OAL) | 3″ | Style | Square |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | CrN | Series/List # | 3723 |
| Flute Count (NOF) | 2 |
Product Features
| Remarks | •Solid Carbide 2-Flute Ball End Single End Mills •Used for radius and contouring part surfaces •Designed to cut materials ranging from nickel base alloy, stainless, tough alloys, abrasives and non-ferrous | Country of Origin | JP |
Shipping Info
Package Length
2.60000
Package Width
.45000
Package Weight
.0350
