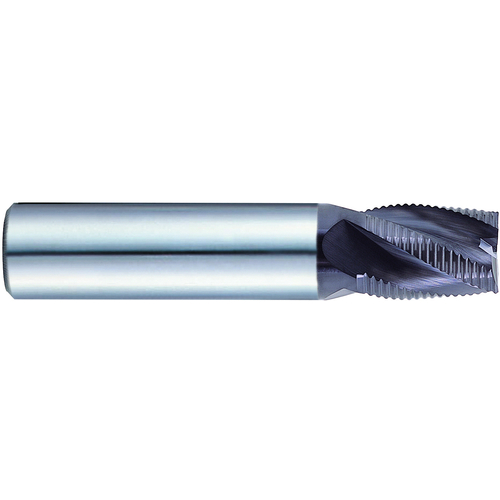

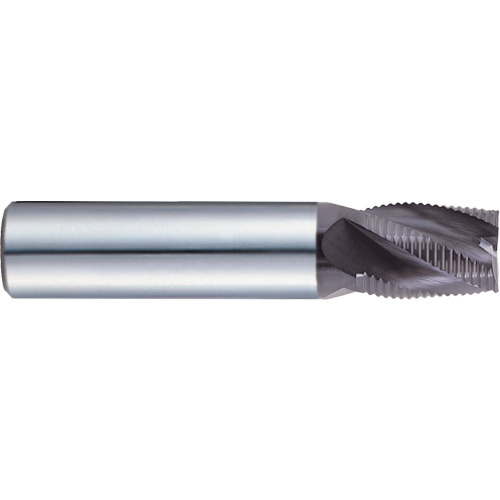

Square End Mill; 25 mm Dia. × 25 mm LOC × 25 mm Shank Dia. × 110 mm OAL ; 5 FL ; Carbide ; TiAlN ; Series EH852
| Cutting Diameter (DC) | 25 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 25 mm | Flute Type | Roughing |
| Overall Length (OAL) | 110 mm | Style | Square End 30 Degrees Helix Short Length Fine Pitch Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.9843″ |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | EH852 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
1.6225
