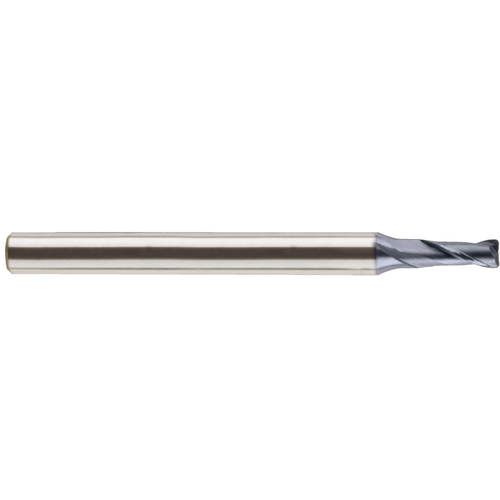

Corner Radius End Mill; 4.5 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 2 FL ; Carbide ; AlCrN ; Series SEMD99
| Cutting Diameter (DC) | 4.5 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 11 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 80 mm | Style | Corner Radius |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlCrN | Series/List # | SEMD99 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4.2913
Package Width
0.5118
Package Height
0.5118
Package Weight
0.062
