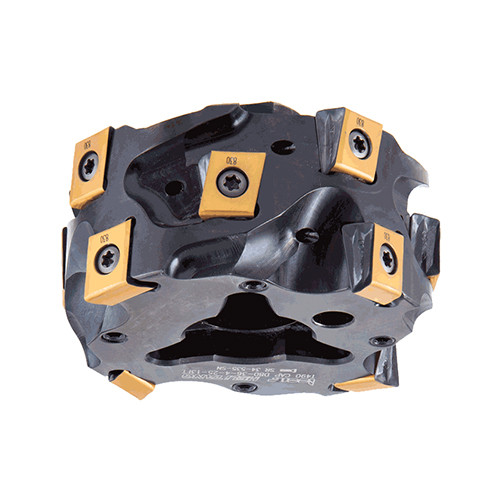

T490 CAP-D80-36-4-25-13FT

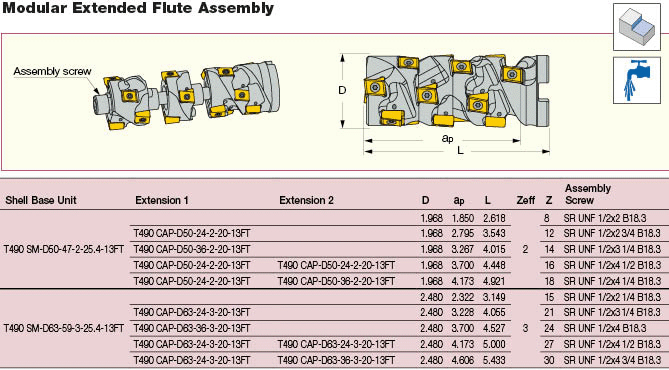

Extension units for modular extended flute shell mills.
| Application | | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | T490 LNHT 1306..PNTR |

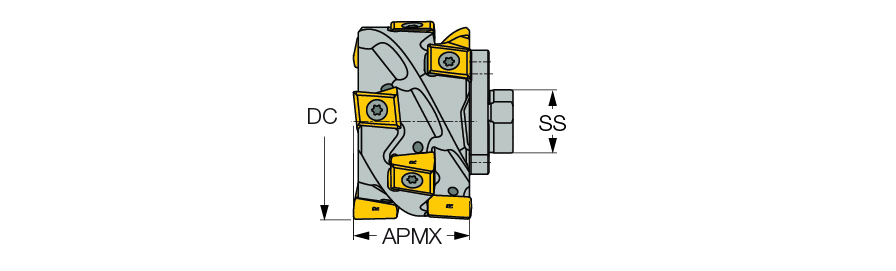

| Depth of Cut Maximum (APMX) | 1.417″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 3.15″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 1.417″ | Body Material | Steel |
| Cutting Length | 1.417″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extension units for modular extended flute shell mills. | Country of Origin | Israel |
Shipping Info
Package Weight
2.136
