P290 ACK1.5-3-2.1-W125-18
Extended flute endmills carrying .472 and .708″ long edged inserts.

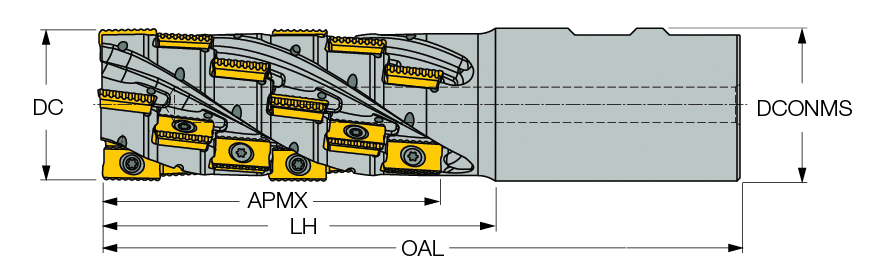

| Application | | Rampdown | Shouldering | | Cutting Depth | 2.95″ |
| Cutting Item Count (CICT) | 9 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 2.1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 5.31″ | Tool Type | 90° Extended flute endmills |
| Cutting Length | 2.1″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
1.432
