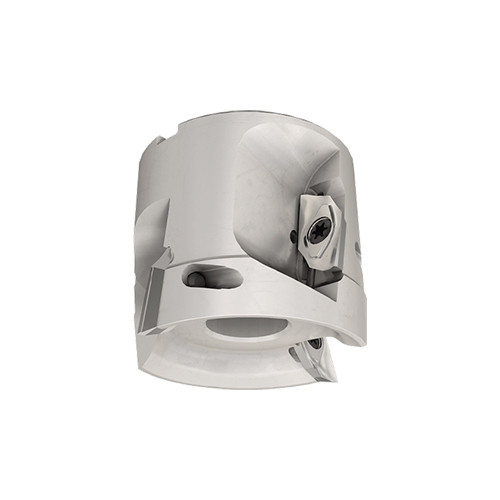

SM D2.50-1.18-1.00-16
Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum.
| Application | | Facing | Rampdown | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 4 | Master Insert Identification (MIID) | HM90 APCR 160502R-P |

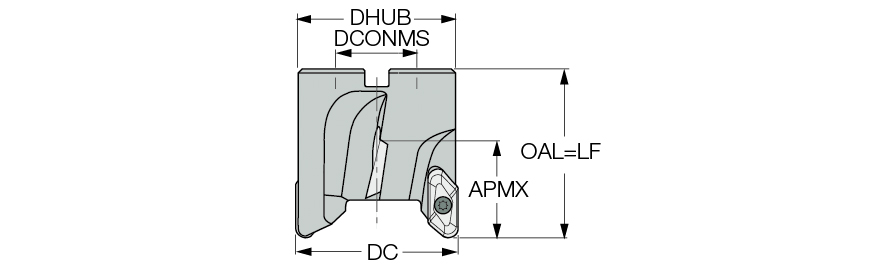

| Depth of Cut Maximum (APMX) | 1.18″ | Coolant Supply Property (CSP) | Coolant Thru |

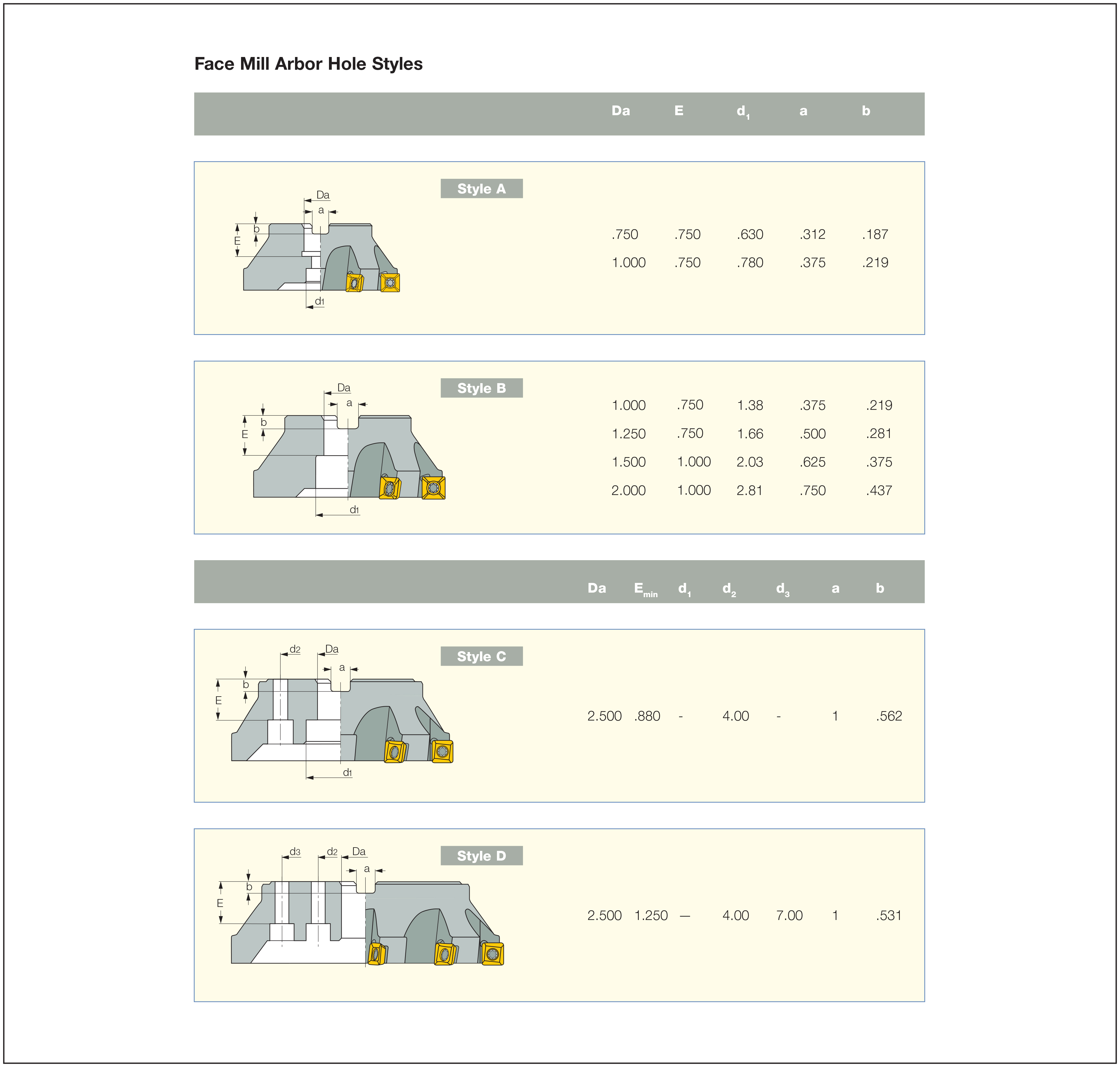

| Cutting Diameter (DC) | 2-1/2″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 2.36″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Overall Length (OAL) | 2.16″ | Body Material | Steel |
| Cutting Length | 1.18″ | Tool Type | Extnd. flute for Aluminum |
Product Features
| Family Description | Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | The upper insert should always have a .016 corner radius For corner radii larger than .079, tool body should be modified Insert tightening torque: 53 Lbfxin For adaptation click on More Info |
Shipping Info
Package Weight
1.896
