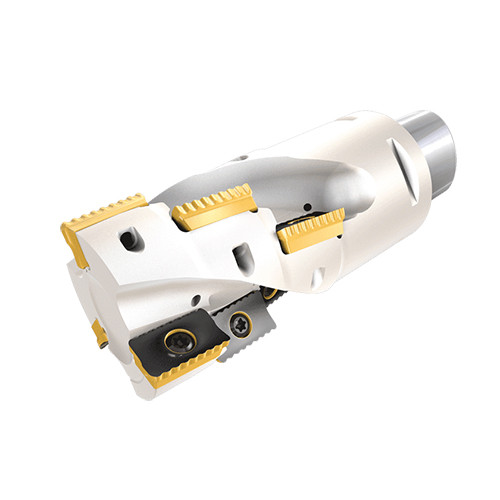

P290 ACK D32-3-36-C5-18
Extended flute endmills with CAMFIX (ISO 26623-1 standard) shanks carrying .709″ long edged inserts.
| Application | | Rampdown | Shouldering | | Cutting Depth | 2.52″ |
| Cutting Item Count (CICT) | 6 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |

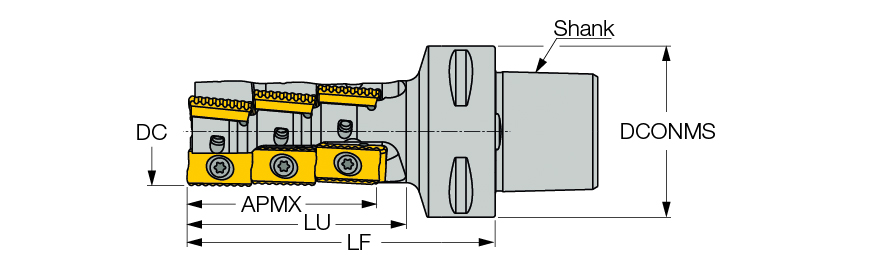

| Depth of Cut Maximum (APMX) | 1.417″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1.26″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Cutting Length | 2.05″ | Tool Type | 90° Extended flute endmills |
| Number of Teeth | 16 | Connection Code Machine Side (CCMS) | CAMFIX |
Product Features
| Family Description | Extended flute endmills with CAMFIX (ISO 26623-1 standard) shanks carrying .709″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.720
