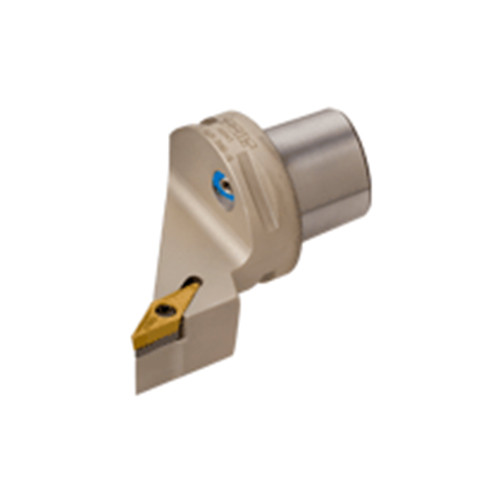

C5 SVJCR-35060-16
93° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle.

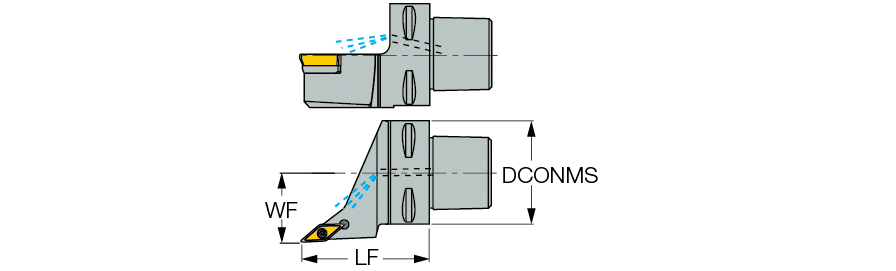

| Overall Length (OAL) | 3.543″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 2.362″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 1.378″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC..33.. | Style | SCLCL08-3A |
| Coolant Supply Property (CSP) | Coolant Thru | Insert Style | 2.362″ |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | 93° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
1.411
