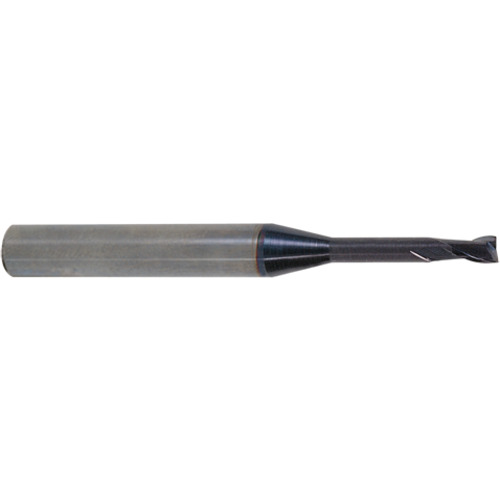

Square End Mill; 1.5 mm Dia. × 2.3 mm LOC × 4 mm Shank Dia. × 45 mm OAL ; 2 FL ; Carbide ; Y-Coating ; Series GM883
SQ End Mill; 1.5 mm Dia. × 2.3 mm LOC × 4 mm Shank Dia. × 45 mm OAL ; 2 FL ; Carbide ; AlCrN ; Series GM883
| Cutting Diameter (DC) | 1.5 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 12 mm |
| Depth of Cut Maximum (APMX) | 2.3 mm | Applicable Material | | Steel | |
| Overall Length (OAL) | 45 mm | Neck Diameter (DN) | 1.45 mm |
| Cutting Edge Material | Carbide | Length Group | Rib Processing |
| Coating | AlCrN | Decimal Equivalent | 0.0591″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | GM883 |
| Shank Type | Round | Trade Name | X Power Pro |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.1
