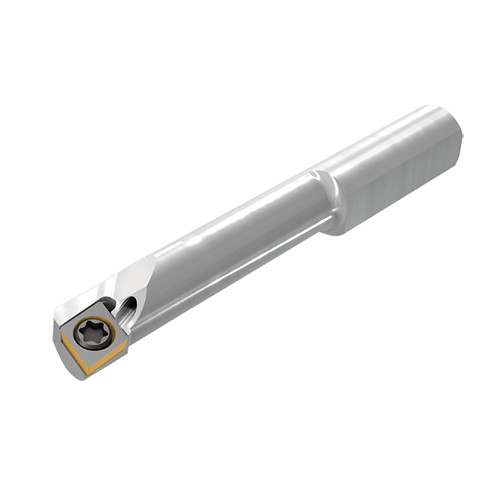

PICIN A05-T20-SCLCR-03
PICCO tools on which 80° rhombic inserts are mounted
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Usable Length (LU) | 0.79″ |
| Minimum Bore Diameter (DMIN) | 0.177″ | Shank Height (H) | 0.177″ |
| Functional Length (LF) | 1.378″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Rake Angle Axial (GAMP) | 0 Degrees |
| Application | | Int. 80° Diamond 95° Approach | | Rake Angle Radial (GAMF) | 15 Degrees |
| Functional Width (WF) | 0.073″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCGT 03X101-F1P | Measurement Type | Inch |
Product Features
| Family Description | PICCO tools on which 80° rhombic inserts are mounted | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
23
