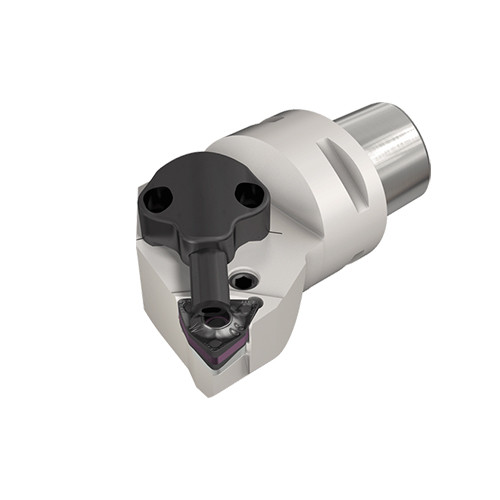

C5 PWLNR-35060-08X-JHP
Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high-pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat).

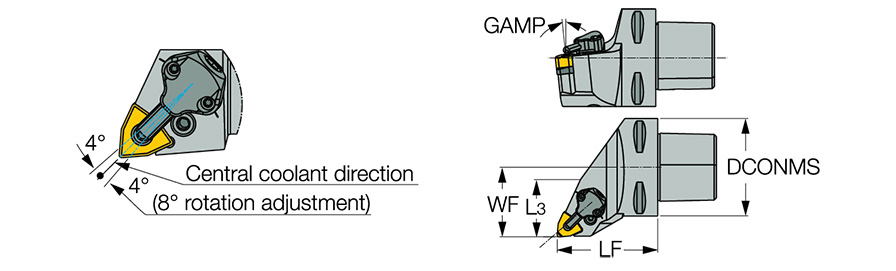

| Overall Length (OAL) | 3.543″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 2.362″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1.378″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | WNMX 45. WNMG 43. | Style | SCLCL08-3A |
| Application | | Ext. 80° Trigon 95° Approach | | Insert Style | 2.362″ |
Product Features
| Family Description | Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high-pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat). | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
1.808
