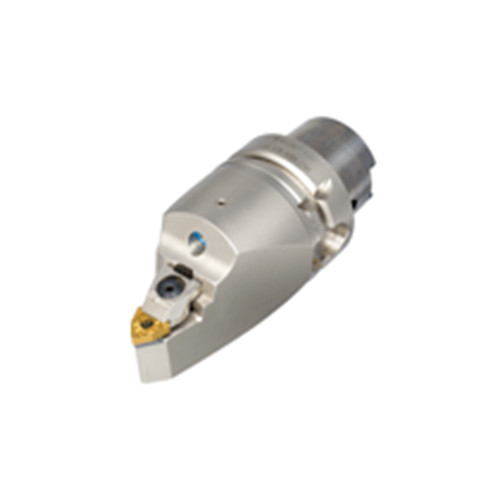

HSK A63WH MUMNN J12MW
MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic with trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard

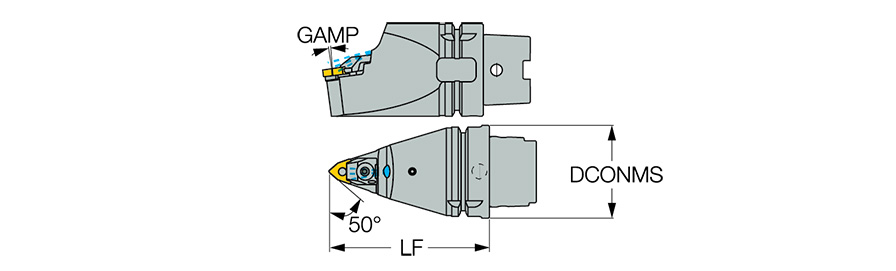

| Overall Length (OAL) | 5.591″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 4.331″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Master Insert Identification (MIID) | W/C/SN..4.. | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | | Insert Style | 4.331″ |
| Rake Angle Axial (GAMP) | -7 Degrees | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic with trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard | Country of Origin | Israel |

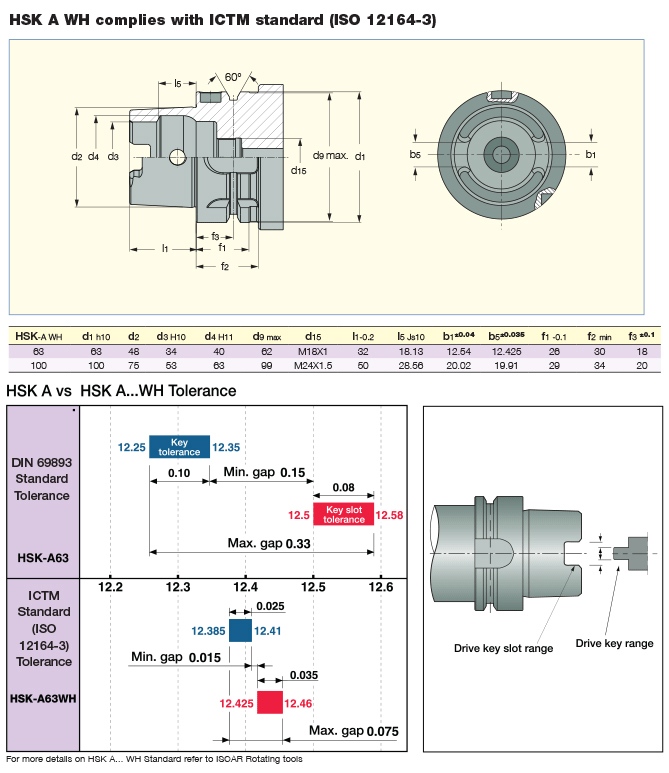

| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
LocalField10
0
Package Weight
4.034
