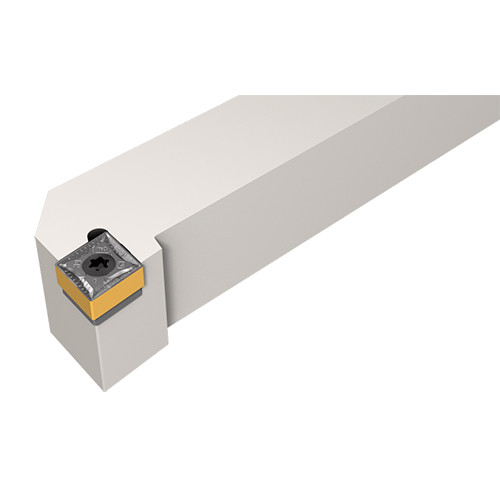

SCLCR 16-3
Screw lock tools carrying 80° diamond inserts with 7° clearance angle.

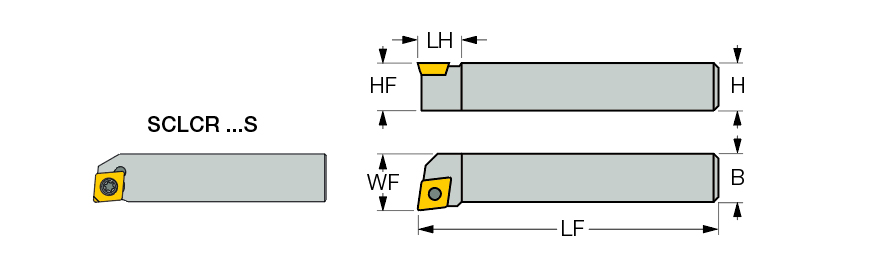

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 0.71″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCR 16-3 |
| Master Insert Identification (MIID) | CC.. 3 | Insert Style | 6″ |
| Application | | Ext. 80° Diamond 95° Approach | |
Product Features
| Family Description | Screw lock tools carrying 80° diamond inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.726
