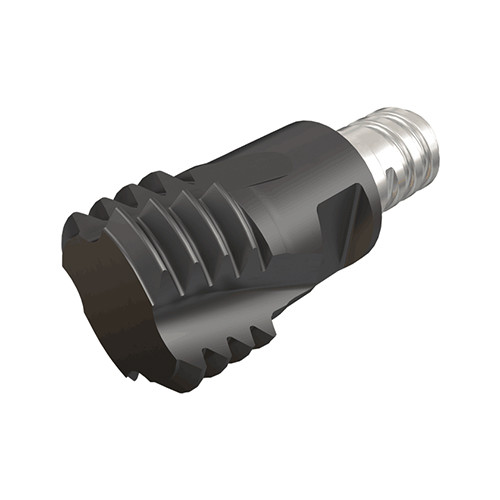

MT 15.3D13 10UN-MMT08 IC908
Carbide milling heads with a threaded (MULTI-MASTER) connection for internal UN thread profile
| Thread Standard | UNC |THFT | | Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 10 | Cutting Edge Material | Carbide |
| Thread Diameter Size (TDZ) | 3/4″ | Tool Type | Solid carbide thread mills |

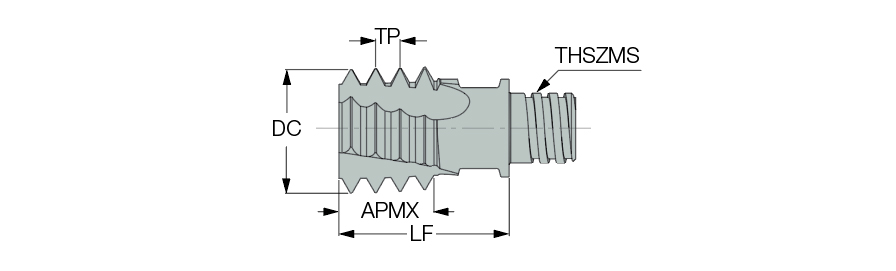

| Depth of Cut Maximum (APMX) | 0.492″ | Functional Length (LF) | 0.787″ |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.602″ | Overall Length (OAL) | 1.1″ |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Coating | TiAlN | Thread Size | 3/4 - 10 |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal UN thread profile | Country of Origin | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.093
