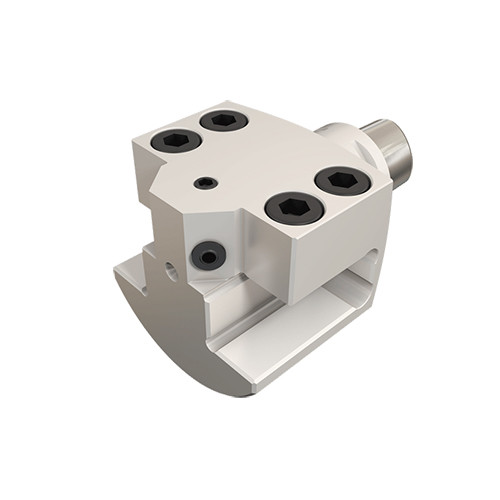

C5 ADES-20

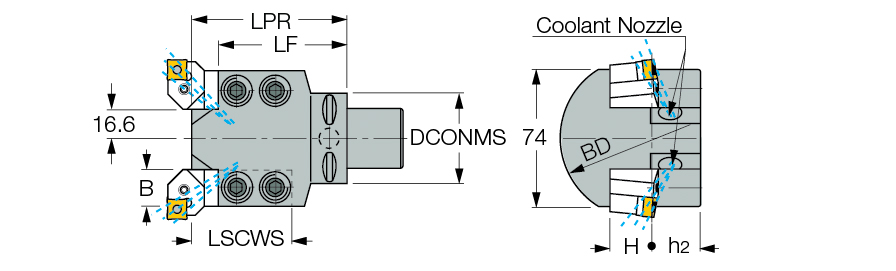

| Protruding Length (LPR) | 85 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Height (H) | 20 mm | Measurement Type | Metric |
| Body Diameter (BD) | 90 mm | Weight of Item (WT) | 2.12 Kg |
| Body Length (LB) | 71 mm | Body Material | Steel |
| Shank Size (SS) | 50 | Overall Length (OAL) | 115 mm |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools. | Country of Origin | Israel |
| Remarks | Use the tools with AD suffix. Regular tools should be shortened. |
Shipping Info
Package Weight
5.210
