TPFN M-18X2.5-F HETI

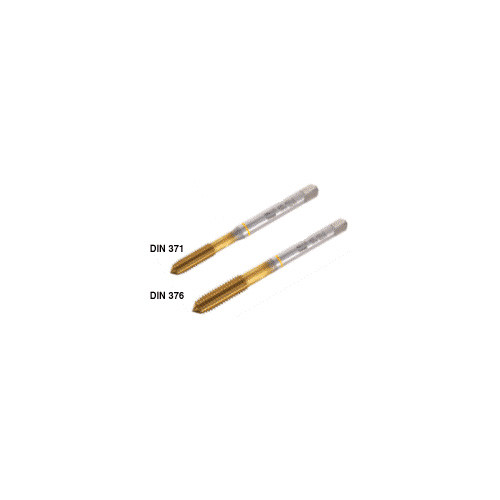

HSSE 5% Co Cold Forming Machine Taps - ISO Metric Coarse Threads, According to DIN 13

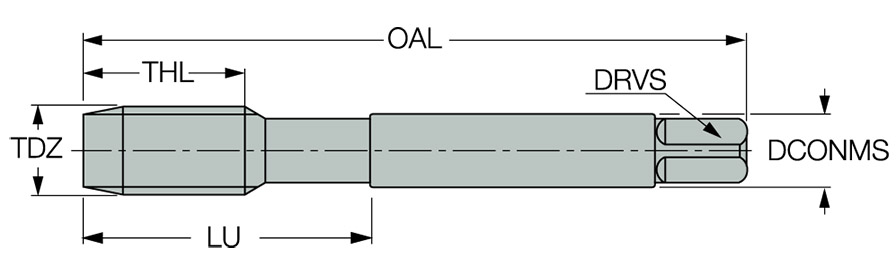

| Tool Type | Machine Blind Hole Taps | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M18 | Coating | TiN |
| Thread Pitch (TP) | 2.5 mm | Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ | Cutting Edge Material | HSS |
| Thread Cutting Part Length (THL) | 1.181″ | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 0.551″ | Thread Size | M18 × 2.5 |
| Flute Count (NOF) | 6 | Body Material | HSS |
| Tap Standard | DIN 376 |
Product Features
| Family Description | HSSE 5% Co Cold Forming Machine Taps - ISO Metric Coarse Threads, According to DIN 13 | Country of Origin | Hungary |
