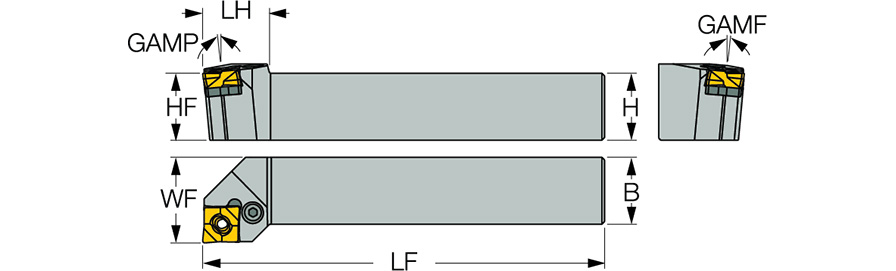

| Shank Height (H) | 16 mm | Master Insert Identification (MIID) | CXMG 09... |
| Shank Width (B) | 16 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 100 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 19 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.35 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
Product Features

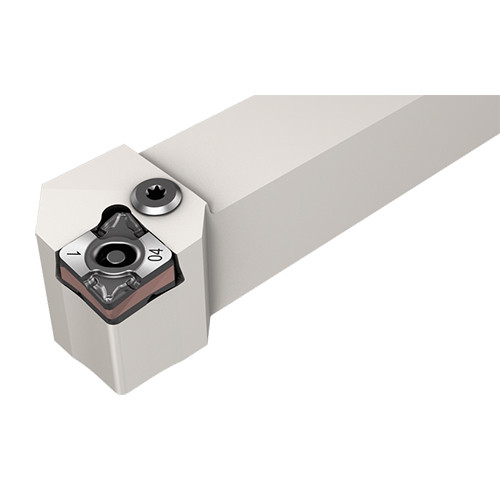

| Family Description | Lever lock tools carrying CXMG 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.518
